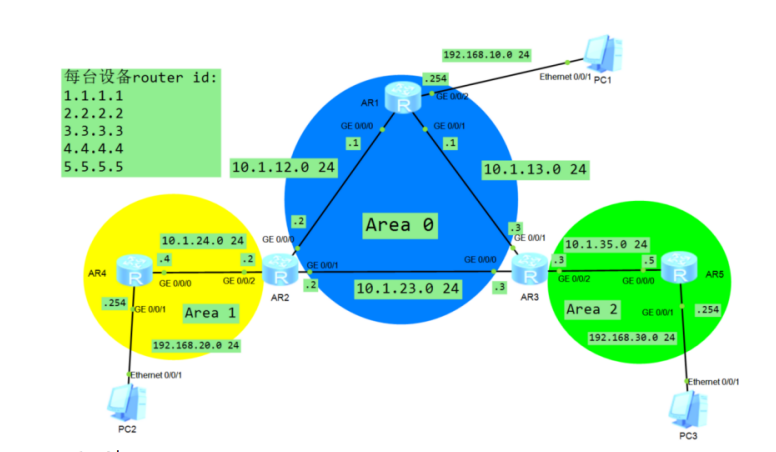

实训九

<R1>

sysname R1

undo info-center enable

interface GigabitEthernet0/0/0

ip address 10.1.12.1 255.255.255.0

interface GigabitEthernet0/0/1

ip address 10.1.13.1 255.255.255.0

interface GigabitEthernet0/0/2

ip address 192.168.10.254 255.255.255.0

ospf 1 router-id 1.1.1.1

area  0.0.0.0

network 10.1.12.1 0.0.0.0

network 10.1.13.1 0.0.0.0

network 192.168.10.254 0.0.0.0

<R2>

sysname R2

undo info-center enable

interface GigabitEthernet0/0/0

ip address 10.1.12.2 255.255.255.0

interface GigabitEthernet0/0/1

ip address 10.1.23.2 255.255.255.0

interface GigabitEthernet0/0/2

ip address 10.1.24.2 255.255.255.0

ospf 1 router-id 2.2.2.2

area 0.0.0.0

network 10.1.12.2 0.0.0.0

network 10.1.23.2 0.0.0.0

area 0.0.0.1

network 10.1.24.2 0.0.0.0

<R3>

sysname R3

undo info-center enable

interface GigabitEthernet0/0/0

ip address 10.1.23.3 255.255.255.0

interface GigabitEthernet0/0/1

ip address 10.1.13.3 255.255.255.0

interface GigabitEthernet0/0/2

ip address 10.1.35.3 255.255.255.0

ospf 1 router-id 3.3.3.3

area 0.0.0.0

network 10.1.13.3 0.0.0.0

network 10.1.23.3 0.0.0.0

area 0.0.0.2

network 10.1.35.3 0.0.0.0

<R4>

sysname R4

undo info-center enable

interface GigabitEthernet0/0/0

ip address 10.1.24.4 255.255.255.0

interface GigabitEthernet0/0/1

ip address 192.168.20.254 255.255.255.0

interface GigabitEthernet0/0/2

ospf 1 router-id 4.4.4.4

area 0.0.0.1

network 10.1.24.4 0.0.0.0

network 192.168.20.254 0.0.0.0

<R5>

sysname R5

undo info-center enable

interface GigabitEthernet0/0/0

ip address 10.1.35.5 255.255.255.0

interface GigabitEthernet0/0/1

ip address 192.168.30.254 255.255.255.0

interface GigabitEthernet0/0/2

ospf 1 router-id 5.5.5.5

area 0.0.0.2

network 10.1.35.5 0.0.0.0

network 192.168.30.254 0.0.0.0
