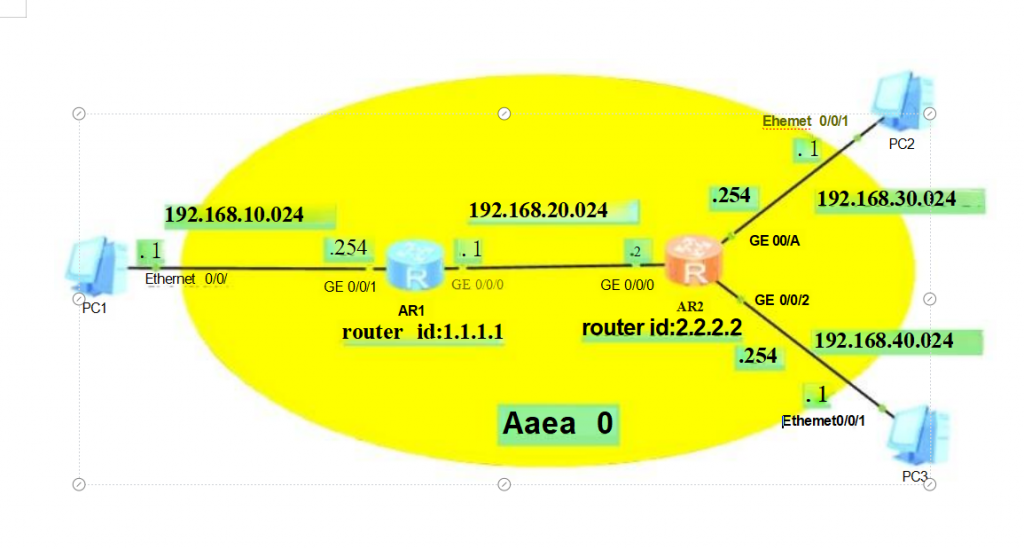

实验七

<R1>

查看交换机状态

dis cu

进入路由视图

sys

修改路由器名称为 R1

sysname R1

关闭日志输出

undo info-center enable

进入端口 0 /0/0

interface GigabitEthernet0/0/0

配置端口 IP 及子网

ip address 192.168.20.1 255.255.255.0

进入端口 0 /0/1

interface GigabitEthernet0/0/1

配置端口 0 /0/ 1 的 IP 及对应子网

ip address 192.168.10.254 255.255.255.0

进入模块 1.1.1.1

ospf 1 router-id  1.1.1.1

area 0.0.0.0

network 192.168.10.254 0.0.0.0

network 192.168.20.1 0.0.0.0

<R1>

dis cu

sys

sysname R2

undo info-center enable

interface GigabitEthernet0/0/0

ip address 192.168.20.2 255.255.255.0

interface  GigabitEthernet0/0/1

ip address 192.168.30.254 255.255.255.0

interface GigabitEthernet0/0/2

ip address 192.168.40.254 255.255.255.0

ospf 1 router-id  2.2.2.2

area   0.0.0.0

network 192.168.20.2 0.0.0.0

network 192.168.30.254 0.0.0.0

network 192.168.40.254 0.0.0.0

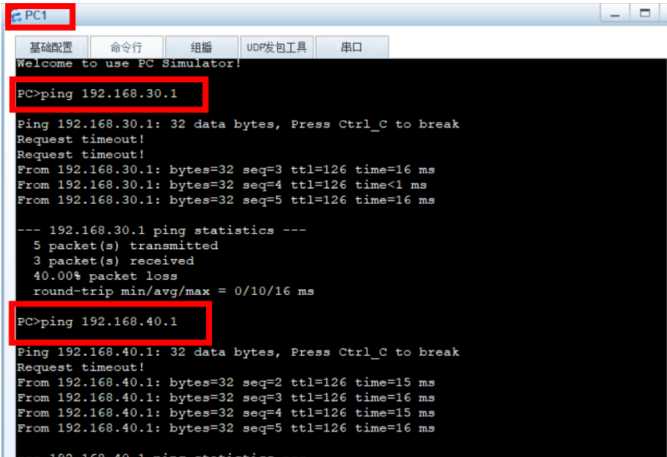

配置完毕，配置 PCIP 后测试 ping
